Supercharged Performance

TruRandom technology is an innovative new technology that offers a significant leap forward in flash

Go

Data Engine Add-In Card

The new category of enterprise PCIe NVMe SSDs that offer supercharged performance

Go

Shared Flash Appliance

Delivers unmatched performance and availability at a TCO that is a fraction of the cost of All-flash arrays

Go

We are Smart IOPS

We’re focused on accelerating our customers’ data access and applications to results previously unthinkable. Our goal is to deliver the storage and networking platform for the modern datacenter and redefine your expectations of what is achievable when TruRandom is at work!
Keep scrolling to see what Smart IOPS technology can do for you

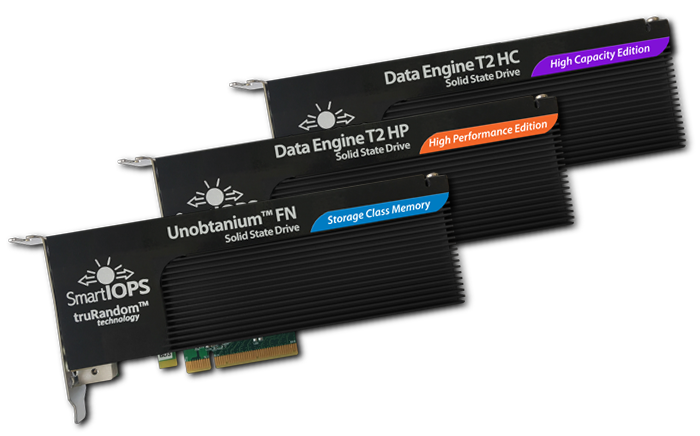

Data Engine™ NVMe SSD Add-In Card

It’s not an SSD – It’s a Data Engine!

Meet the Data Engine: Category-defining uber-enterprise and HPC PCIe NVMe SSD. At an unprecedented 1,700,000 IOPS, Data Engine towers over competing high-end PCIe NVMe enterprise SSDs.

  • Four times the performance of the closest competitor SSD with super-low latency that generate superior application SLA
  • TruRandom pattern recognition reduces the power signature when processing non-random I/O
  • Non-blocking, stateful and scalable architecture that supports unlimited concurrent sustained random data requests
  • Intelligent lookup techniques increase performance by orders of magnitude
  • Scalable to over a billion IOPS inside the rack.

Data Engine SSDs are initially offered in three models, ranging from 2-10TB:

Data Engine T2

PCIe Gen3 x8 NVMe
HHHL Add-In Card
1,700 KIOPS

Data Engine T2D

PCIe Gen3 x8 NVMe
HHHL Add-In Card
1,700 KIOPS

Data Engine T4

PCIe Gen3 x16 NVMe
HHHL Add-In Card
3,400 KIOPS

Specifications Data Engine T2   Data Engine T2D  Data Engine T4
 Capacity 2-10TB 2-10TB  2-10TB
 Interface  PCIe Gen3 x8  PCIe Gen3 x8

PCIe Gen3 x16

 NVMe Specification NVMe 1.2b NVMe 1.2b NVMe 1.2b
 NAND Type  16nm MLC

3D MLC

15nm MLC
 Form Factor  HHHL AIC  HHHL AIC  HHHL AIC
     – TruRandom Read Bandwidth Sustained, 4KB (MB/s) 6,800 6,800  13,600
     – TruRandom Write Bandwidth Sustained, 4KB (MB/s) 4,000 6,800 4,000
     – TruRandom Read (KIOPS) Sustained, 4KB 1,700 1,700 3,400

     – TruRandom Write (KIOPS) Sustained, 4KB

1,000 1,700 1,000
     – TruRandom 70/30 R/W (KIOPS) Sustained, 4KB 1,500 1,700 1,700
Power Consumption (Active/Idle) W (typ.) 35/9 35/9 35/9

Note: All specifications for Data Engine NVMe Add-In Card are preliminary and subject to change.

Smart IOPS™ Shared Flash Appliance

Smart IOPS™ Shared Flash Appliance

Incredible flexibility comes in a Smart IOPS chassis! Move data sets critical to the business into a high performance service level. Swap and move data sets in and out as business dictates. You want agility – we give you Smart IOPS flash appliance.

Specifications Mainstream Datacenter
Effective Capacity* 10-40TB 40-400TB
IOPS 16,000,000 200,000,000
Bandwidth 64GB/s 800GB/s
Connectivity FC, iSCSI, Ethernet FC, iSCSI, Ethernet
Form Factor 1U 2U
Drive Bays Up to 12 x Data Engine AIC Up to 24 x Data Engine AIC

Note: All specifications for Shared Flash Appliance are preliminary and subject to change without notice.
* Effective capacity assumes HA, RAID, and metadata overhead, GB-to-GiB conversion, and includes the benefit of data reduction with deduplication, compression, and pattern removal.

TruRandom Technology™

A Significant Leap Forward

In the age of commodity NAND flash, the real SSD differentiation comes in the form of controller design and firmware suite developed around the core architecture. Smart IOPS’ innovative new architecture – TruRandom® – minimizes the overhead associated with internal SSD housekeeping, garbage collection and program/erase to unleash the raw I/O processing capability in the solid-state device. Additional patent-pending logic enhance data pattern recognition heuristics for data access such that random and sequential I/O requests become indistinguishable – a feat not achieved in the current generation of high-end competing SSDs. This advantage translates to I/O per second (IOPS) limits only within the reach Smart IOPS Data Engine SSDs which is to say that it is nearly 3 times faster than the closest competitor – 3x the performance with sub-10µs latency translates to superior application SLA.

Smart IOPS Flash Summit 2016 Product Video
